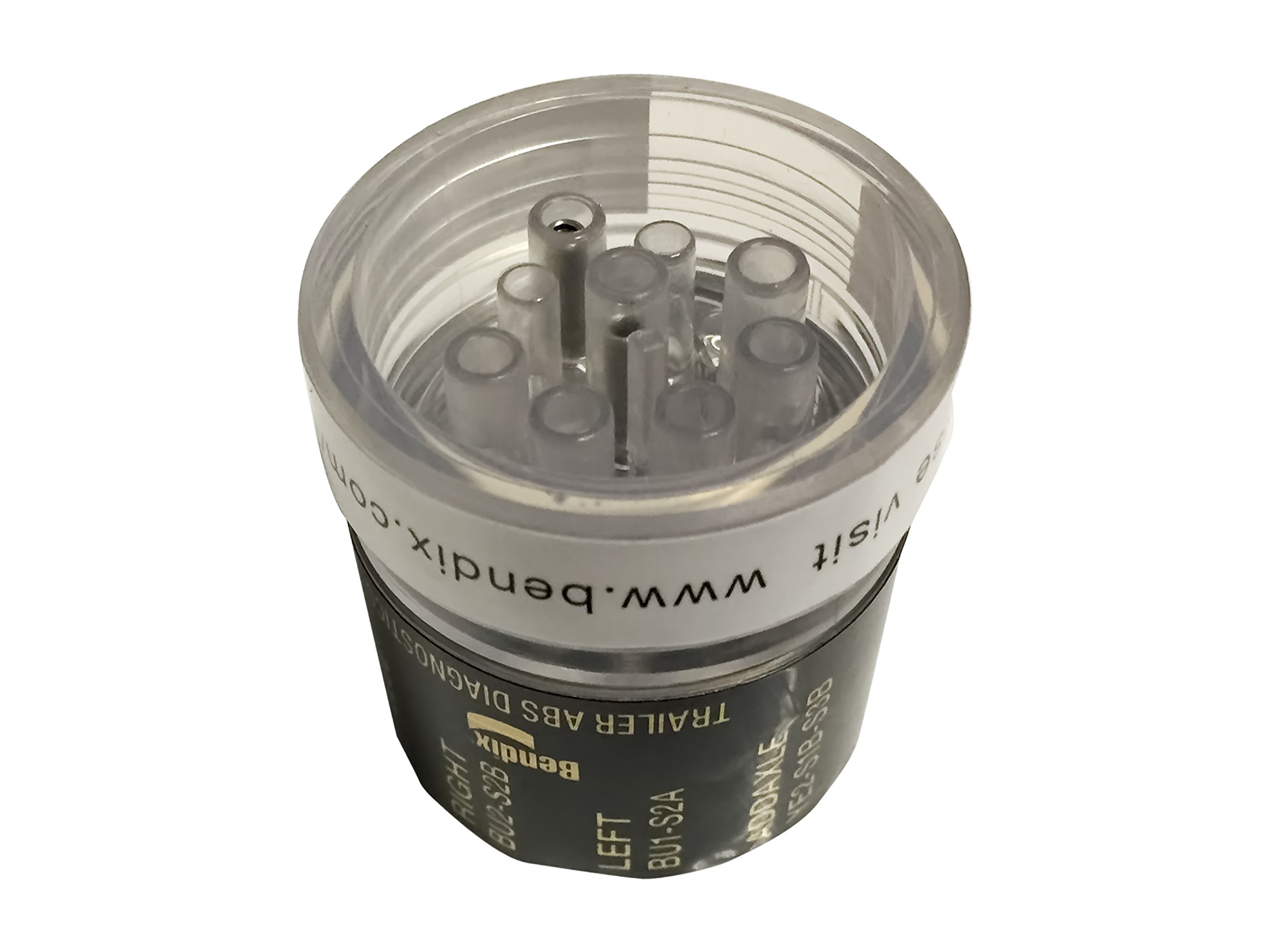

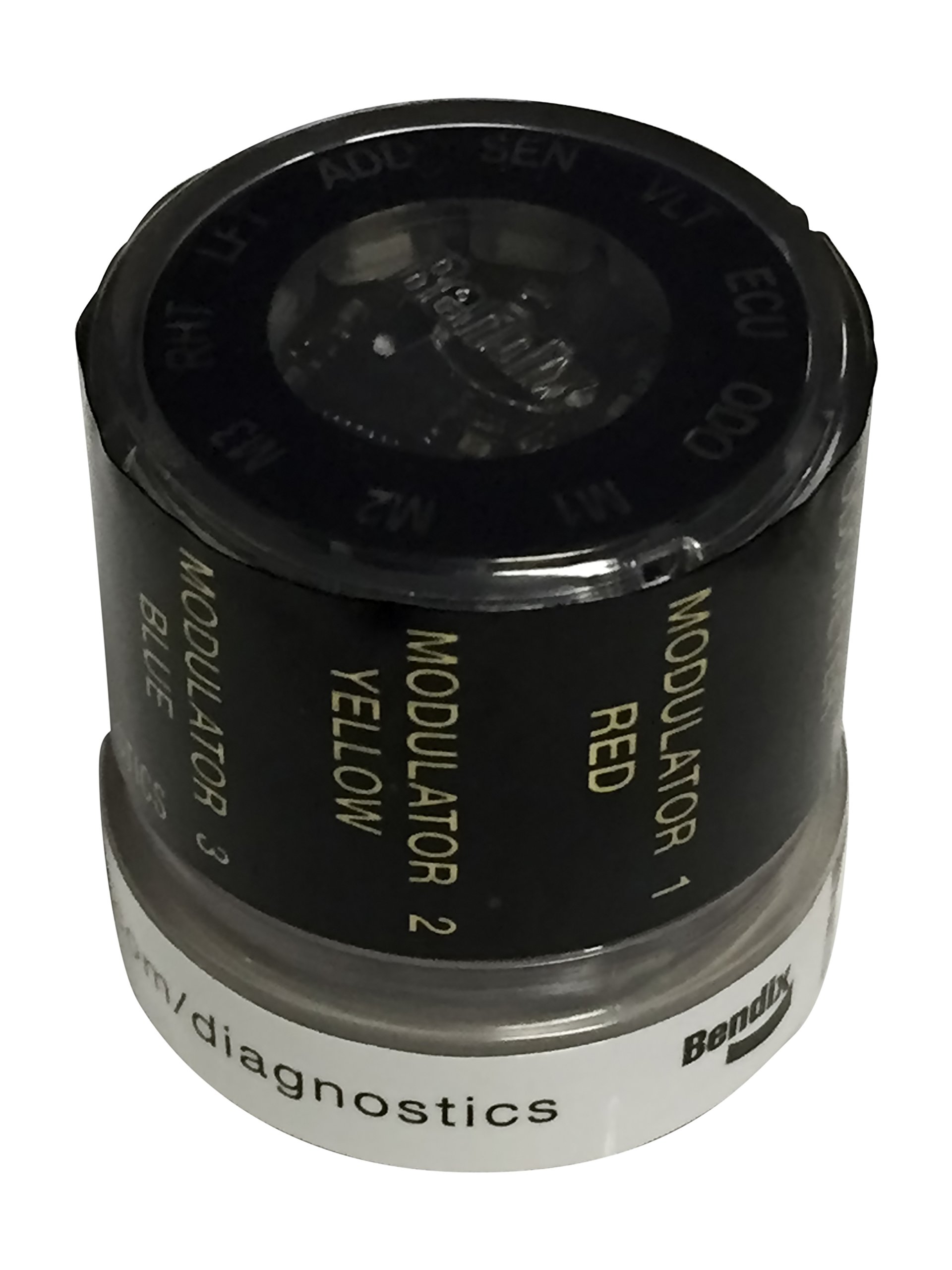

Bendix ABS Trailer Remote Diagnostic Unit (TRDU) - Heavy Duty Truck Diagnostic Tool for ABS System Troubleshooting - Perfect for Fleet Maintenance & Roadside Repairs
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:22 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:40507650
Product Description
The Bendix TRDU (Trailer Remote Diagnostic Unit) is a diagnostic tool providing the technician with a visual indication of component Diagnostic Trouble Code (DTC) information from Bendix Antilock Brake Systems (ABS) for trailers.
Product Features
Troubleshoot ABS system component problems using Diagnostic Trouble Code reporting via LEDs. Blink codes are also activated when the TRDU unit is first attached to trailers with a TABS-6 ECU (the full readout is displayed using the trailer-mounted ABS lamp).
Reset the Diagnostic Trouble Codes on Bendix ABS ECUs by holding a magnet over the “B” of the Bendix logo on the face of the TRDU tool for 6, or less, seconds.
Enter the Self-Configuration Mode for MC-30 and TABS-6 standard & premium models by holding a magnet over the reset area for greater than 6 seconds but less than 11 seconds
Read the odometer data. This information is continuously flashed out using the TRDU unit’s ODO LED as soon as communications is established, and repeats every 10 seconds
